Rock Drilling Tools Taper Button Drill Bits Tapered Cross Bits
Product specifications:
(1) Taper angle: 4° , 4° 46, 6° , 7° , 11° , 12°
(2) Models: Chisel/cross/button bit
(3) Diameter: 20-45 mm
(4) Button bit shape: Spherical/parabolic
(5) Socket inside diameter: 15/19/22/25mm
| Drill bit diameter | Taper(°) |
| (mm) | (in) |
| 28 | 1 3/32 | 6,7 |
| 30 | 1 3/16 | 6,7 |
| 32 | 1 1/4 | 6,7,11,12 |
| 34 | 1 11/32 | 6,7,11,12 |
| 35 | 1 3/8 | 6,7,11,12 |
| 36 | 1 13/32 | 6,7,11,12 |
| 38 | 1 1/2 | 6,7,11,12 |
| 40 | 1 9/16 | 6,7,11,12 |
| 41 | 1 5/8 | 6,7,11,12 |
| 42 | 1 21/32 | 6,7,11,12 |
| 43 | 1 11/16 | 6,7,11,12 |
| 45 | 1 3/4 | 6,7,11,12 |
| 50 | 1 31/32 | 6,7,11,12 |
| 60 | 2 3/8 | 6,7,11,12 |
Tapered cross bit
Used under any rock drilling condition and mainly used for hard or very hard rock formation because of it's comprehensive adaptability. Compared with taper chisel bits, taper cross bits have a better drilling performance because of carbide tips on cross bits doubled, which means carbides shape are cross type on drill bits. Taper cross bit is mainly used for hard or very hard rock formation.
| Description | Diameter | Length | Weight |
| Taper degree a=6 °,7°,11°,12° ; Socket inside d=19,22,25mm | mm | mm | kg |
| 28 | 71 80 | 0.19 |
| 29 | 71 80 | 0.2 |
| 30 | 50 67 71 80 | 0.3 |
| 32 | 50 67 71 80 | 0.3 |
| 33 | 71 80 | 0.32 |
| 34 | 67 71 80 | 0.34 |
| 35 | 67 71 80 | 0.35 |
| 36 | 71 80 | 0.36 |
| 38 | 67 71 80 | 0.42 |
| 40 | 71 80 | 0.43 |
| 41 | 71 | 0.45 |
| 42 | 69 80 | 0.46 |
| 44 | 80 | 0.47 |
| 45 | 80 | 0.5 |
We can guarantee all our product:
(1) Direct factory wholesale price, price is cheaper than trading companies.
(2) Strict Quality Control Department, each piece bit need to be checked.
(3) Accept custom order. can special make for you.
(4) Focus on the quality.We seek long-term interest.
(5)Welcome small orders, our Min Quantity Order is 1 piece.

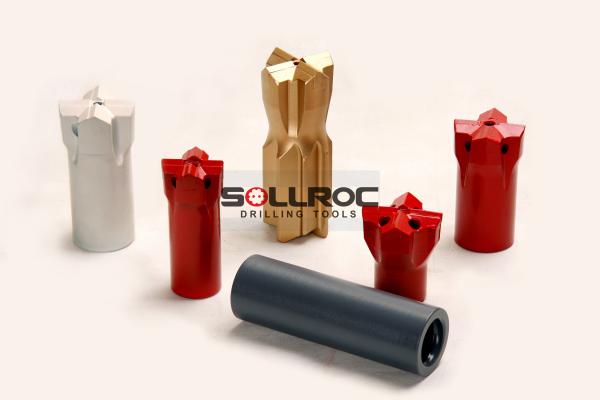

Product photos:
SOLLROC is a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.
